about BIOS

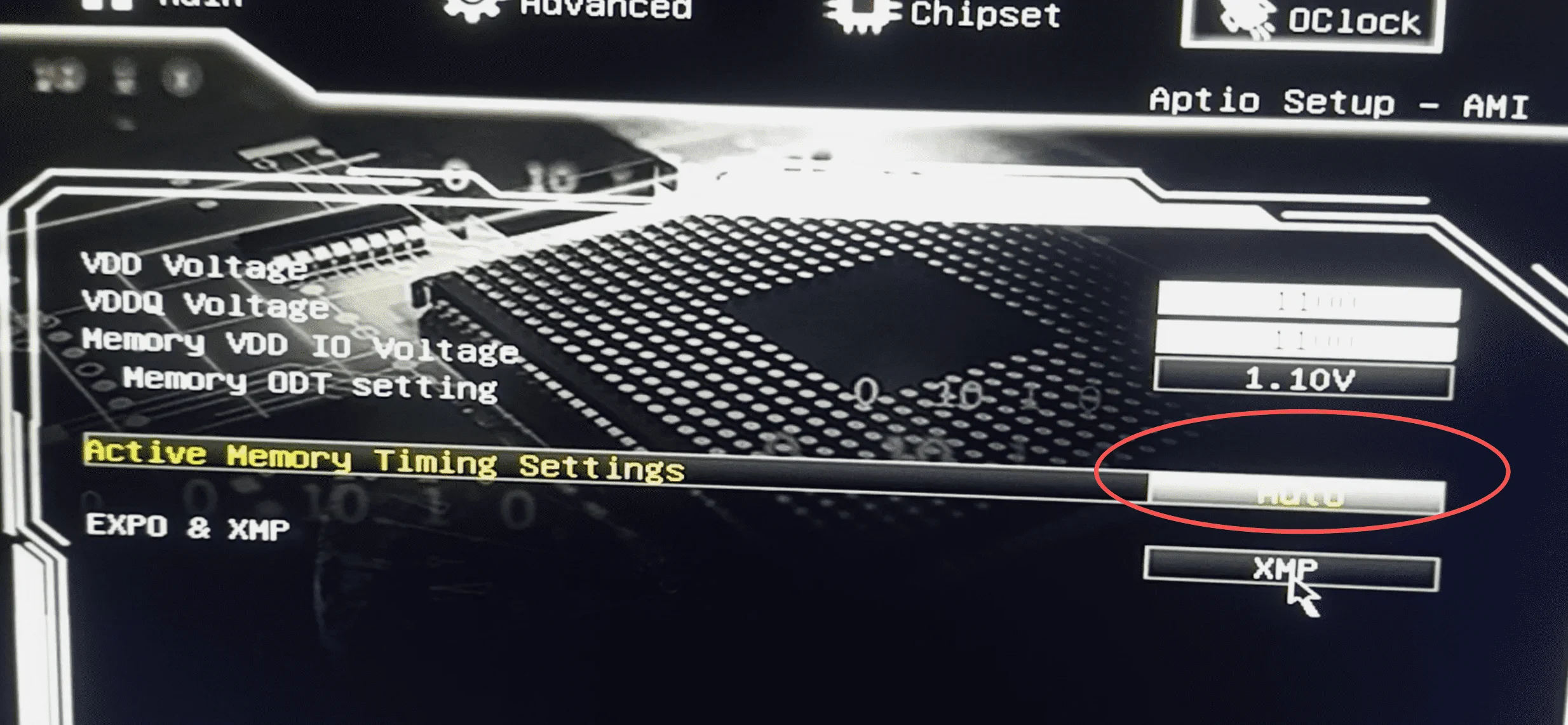

If there's an issue with the BIOS, you can switch from automatic to manual mode and then configure memory overclocking. If only the XMP option is available, it means this memory module only supports XMP. After switching to manual mode, select the memory profile.
Tips:
Supports AMD AM5 Ryzen 7000/8000/9000 series.
If the CPU is 8000 series, due to insufficient channel resources, one of the rear USB 2.0 ports is unavailable.
If the CPU is 7000 and 9000 series, all USB ports can be used normally.
Signing rules:
1. Please note that please shoot the video of the product under video surveillance. If it is a crooked needle caused by logistics problems, please keep the evidence in time and we will solve it for you. Because before shipment, we will adopt strict packaging to avoid damage to the product by logistics as much as possible.
2. Due to fluctuations in the market economy, the logistics transportation efficiency is also affected. If the product is indeed violently transported, resulting in the product being unable to be used normally, please keep the evidence in time and send it to us, and we will provide you with considerate services. vice versa.
3. Thank you for your support and understanding. I wish you a happy life, thank you.
Note
For the motherboard of JGINYUE DDR5, if the customer needs to overclock, the voltage needs to be set to 1.35V at the same time. Please see the operation video on the details page.

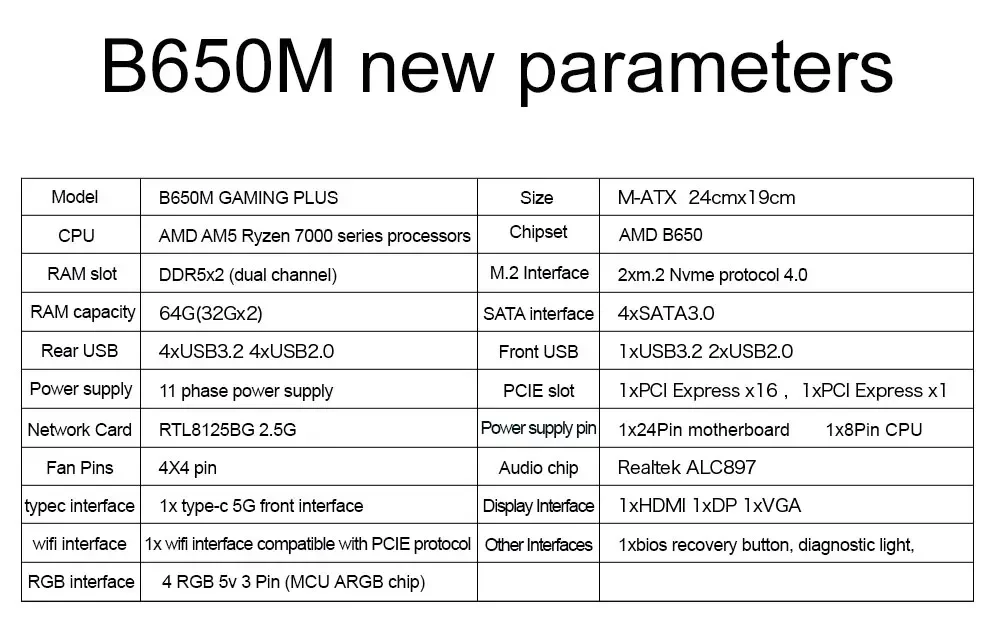

Product Specifications

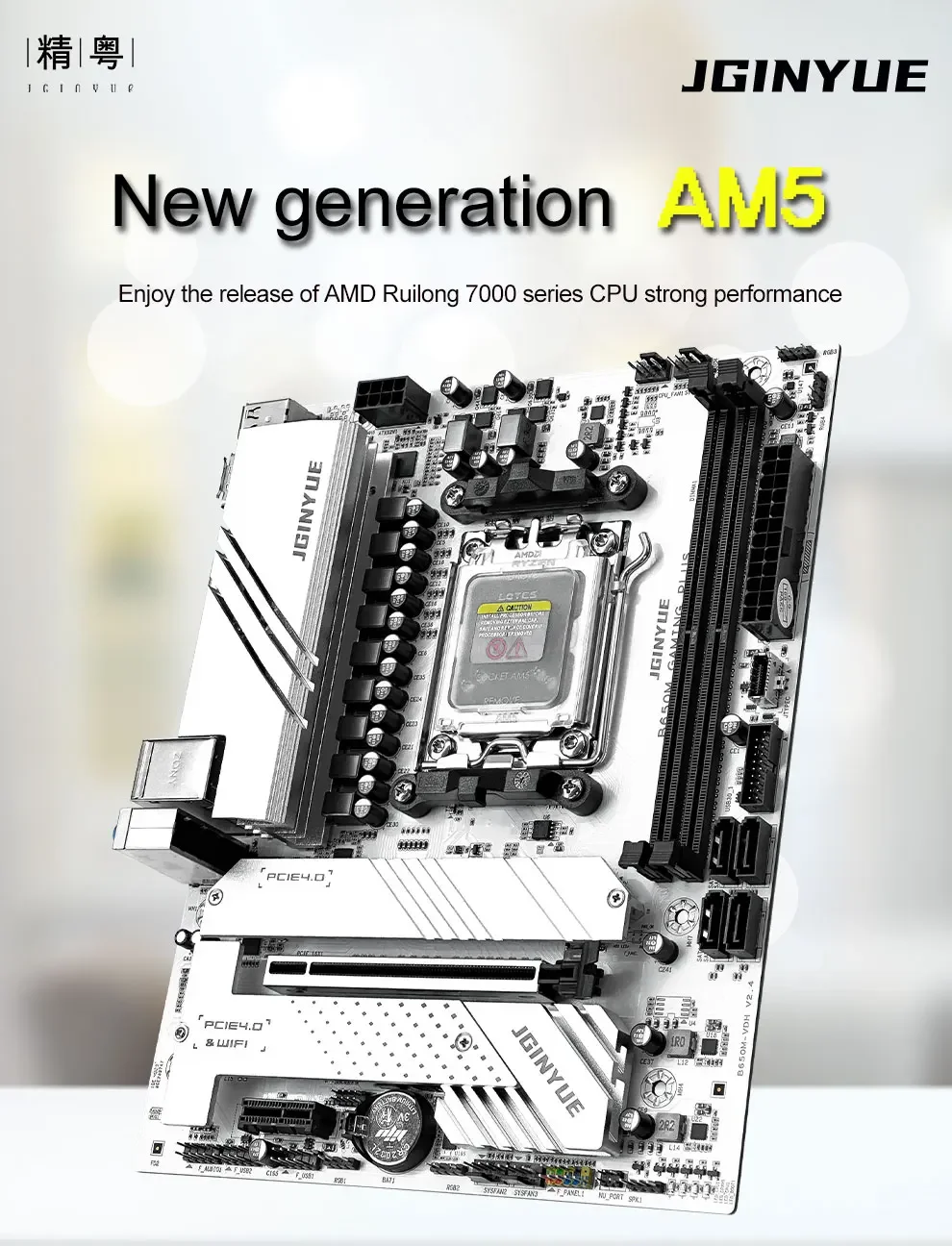

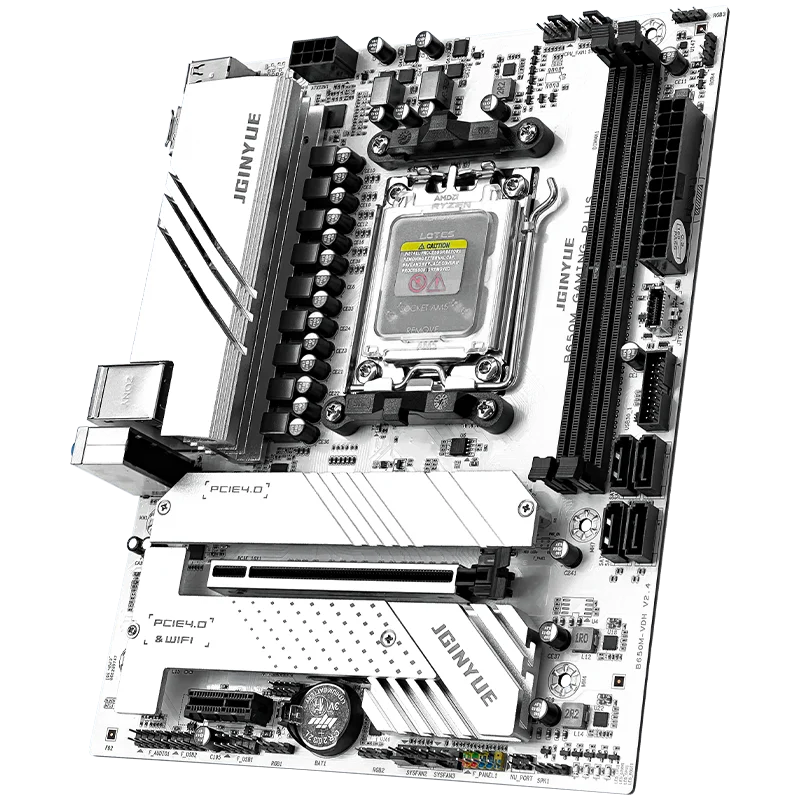

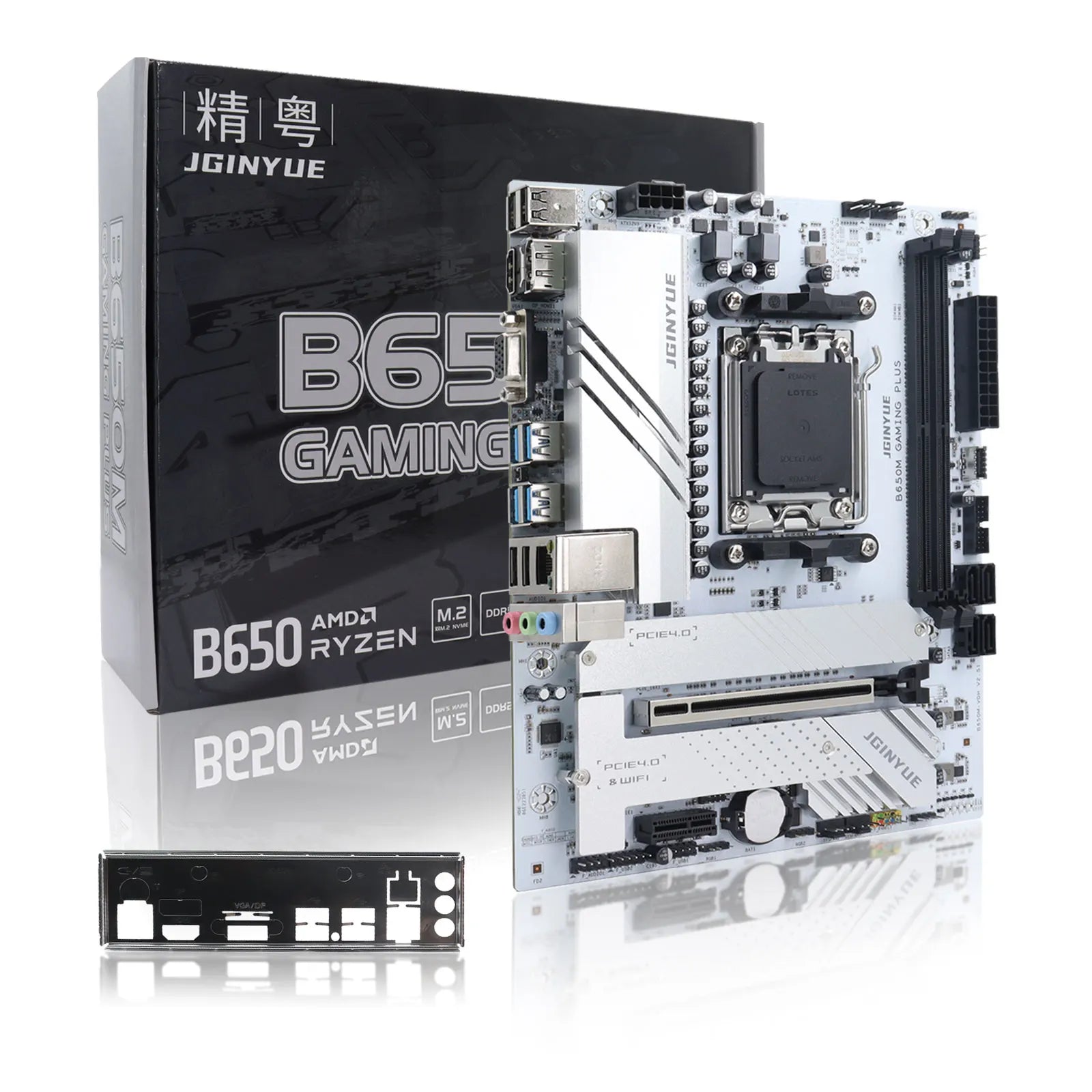

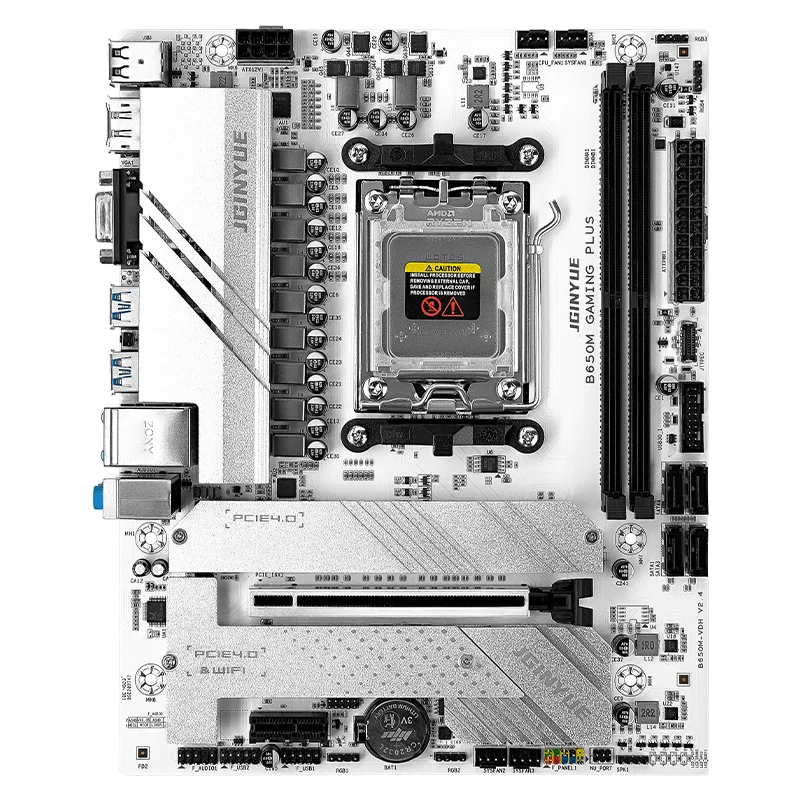

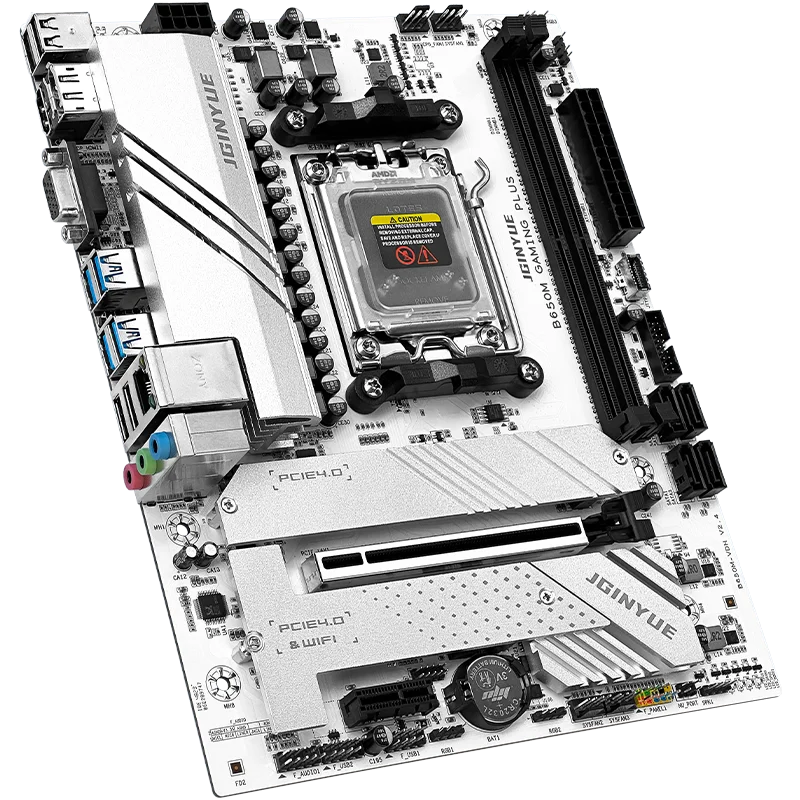

Motherboard model ：B650M GAMING PLUS
Chipset ：AMD B650 chipset
CPU pins：Supports AMD AM5 Ryzen 7000 series desktop processors
Memory slot ：2 DDR5 memory slots
Memory capacity ：Maximum support for 64G
Memory frequency ：Dual channel support for 4800 to 6000+MHz

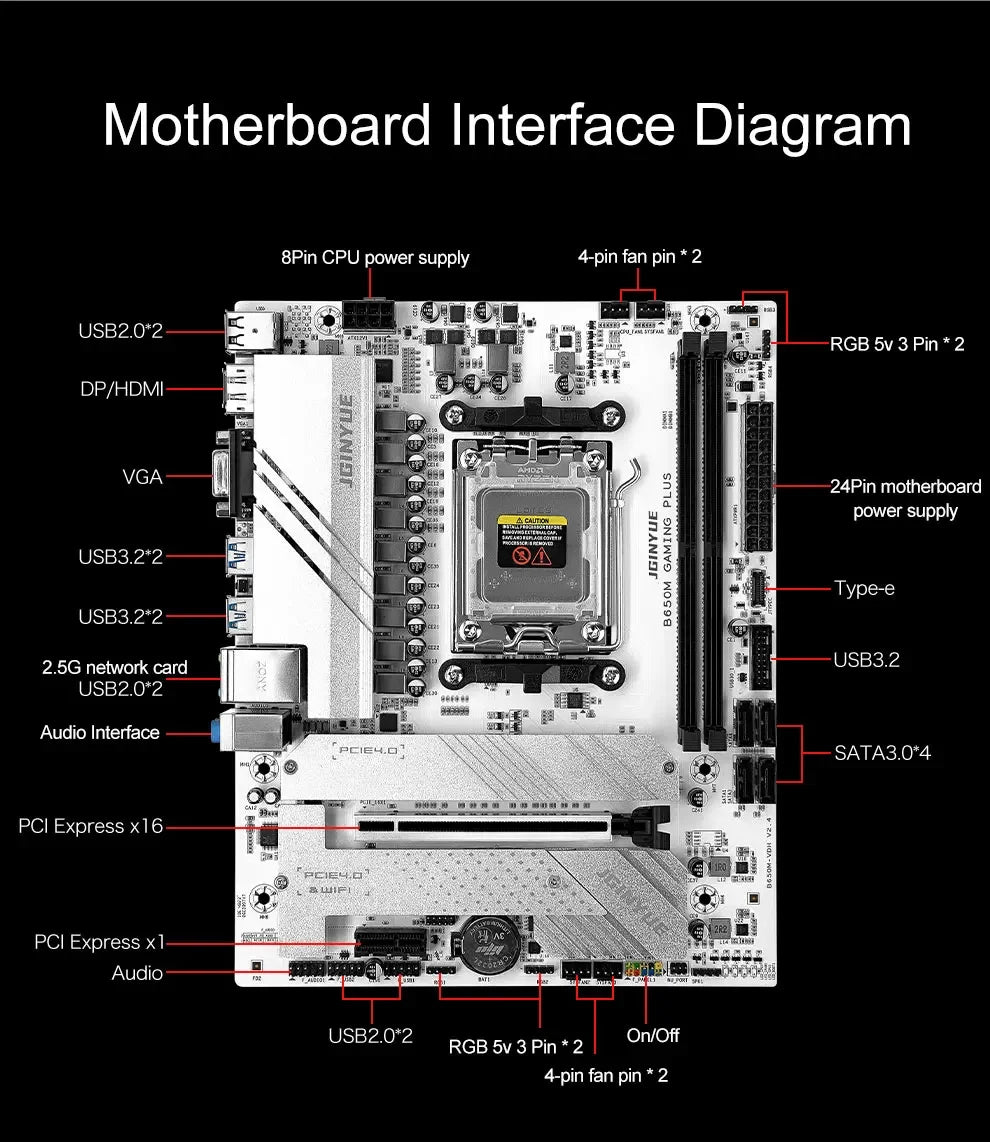

Display interface ：1 HDMI, 1 DP, 1 VGA
Storage interface ：4 SATA3.0 6Gbps; Two M.2 nvme protocols 4.0
USB interface ：4 USB 3.2 and 4 USB 2.0 in the rear; 1 USB 3.2 pin in front and 2 USB 2.0 pins in front (on an 8000 series CPU, due to insufficient channel resources, there may be a rear USB unavailable)
About this item
PCIe interface :1 PCI Express x16 slot, 1 PCI Express x1 slot
Wireless interface :1 WiFi interface (compatible with PCIe protocol)
Onboard sound card :Realtek ALC897
Onboard network card :RTL8125BG 2.5G Ethernet network chip
Power supply socket :Main board 24Pin power supply, CPU 8Pin power supply
Fan pin ：Four 4-pin
RGB pin：4 RGB 5V 3-pin (MCU ARGB chip)
Number of power supply phases：11 phase power supply
Size specifications：24cmx19cm M-ATX
support system：Windows 10; Windows 11
Other interfaces：1 one click BIOS clear button; 1 front Type-e 5G interface; 4 diagnostic lights; 1 SPK1 buzzer pin
