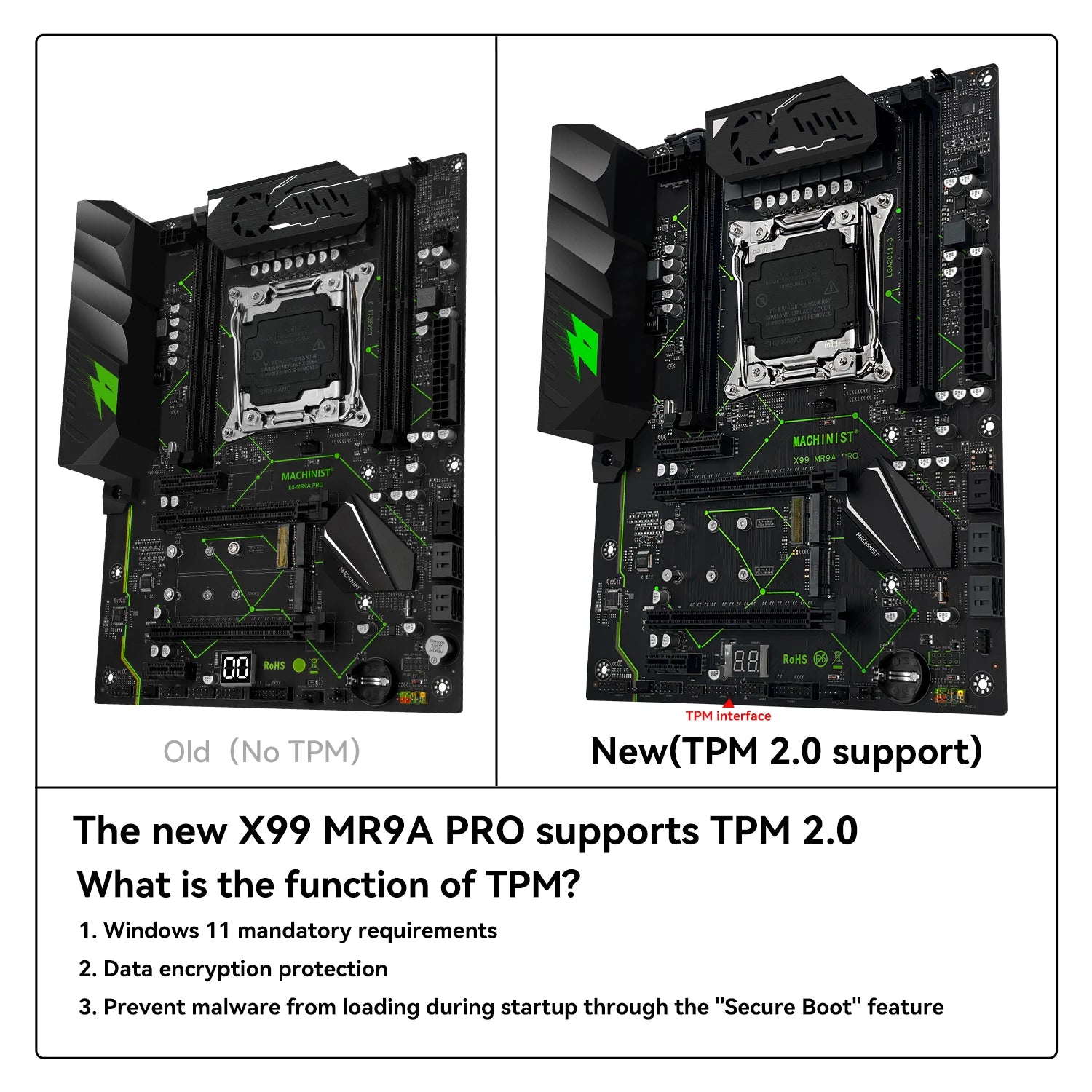

>> This connection sends with TPM2.0 version.

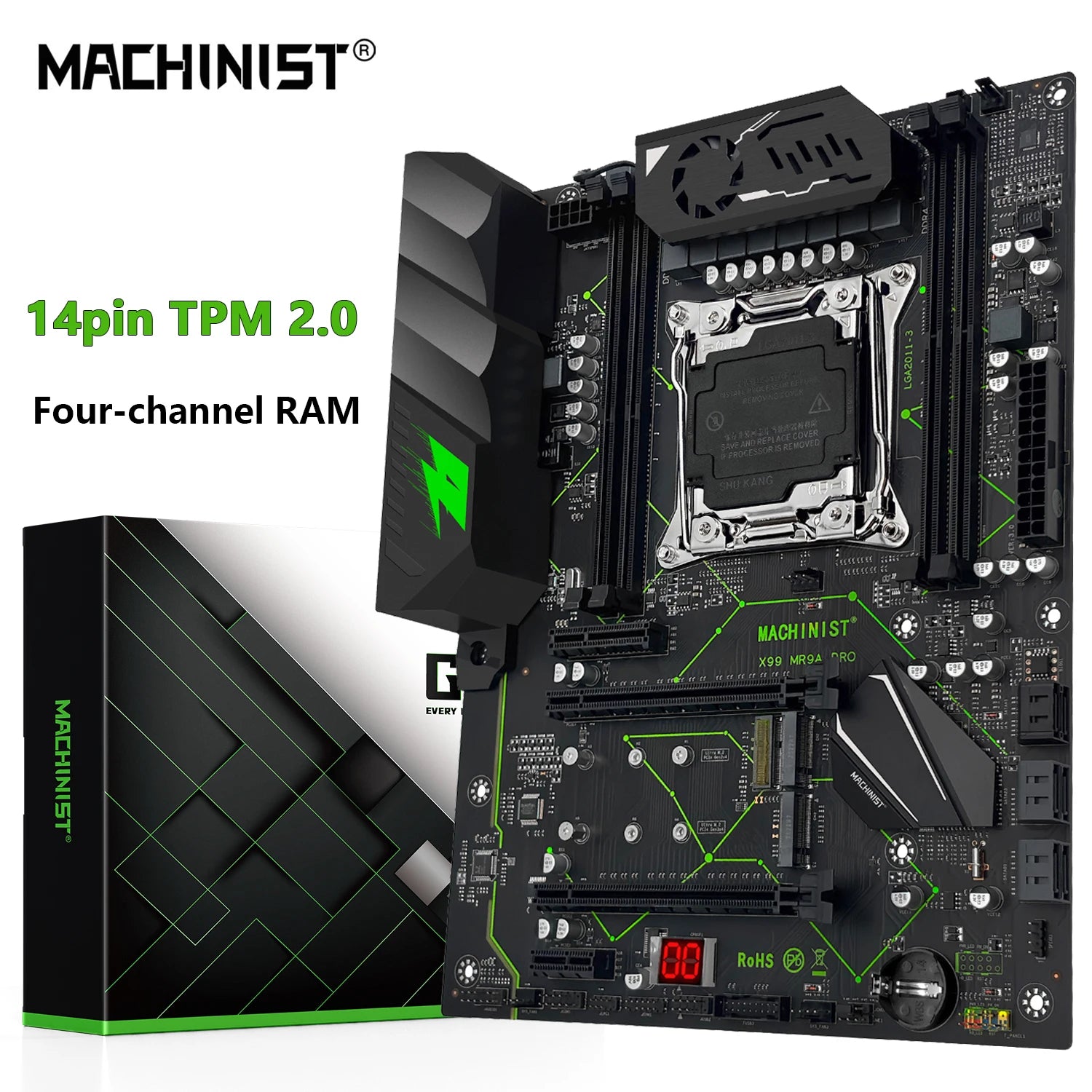

>> Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 MR9A PRO.

Processor: Supports Intel LGA2011-3-pin series processors.

Chipset :B85/C226/Q87Chipset.

(All items are manually tested and packaged before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!)"

> > Memory:

Technology: Four-channel DDR4. Supports 2133/2400/2666/3200MHZ.

The maximum capacity is 128GB (32G x 4).

Memory slot :4 * 288-pin DDR4.

Supported memory types: The memory type supports DDR4 desktop and server memory.

Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may be incompatible.

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interfaces :6 USB2.0 ports and 2 USB3.0 ports.

Ethernet: 1 Gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).

>> Internal connector:

TPM2.0: Applicable to the MSI 14-pin interface.

Diagnosis card: 1

PCIe: 2 PCIe 16x, 1 PCIe 4x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin.

SATA ports: 6 (4 SATA2.0; 2 SATA3.0)

One standard 1x8-pin power socket; One standard 1x24-pin power socket;

M.2 interface: 2 PCIE interfaces. One wifi SATA interface.

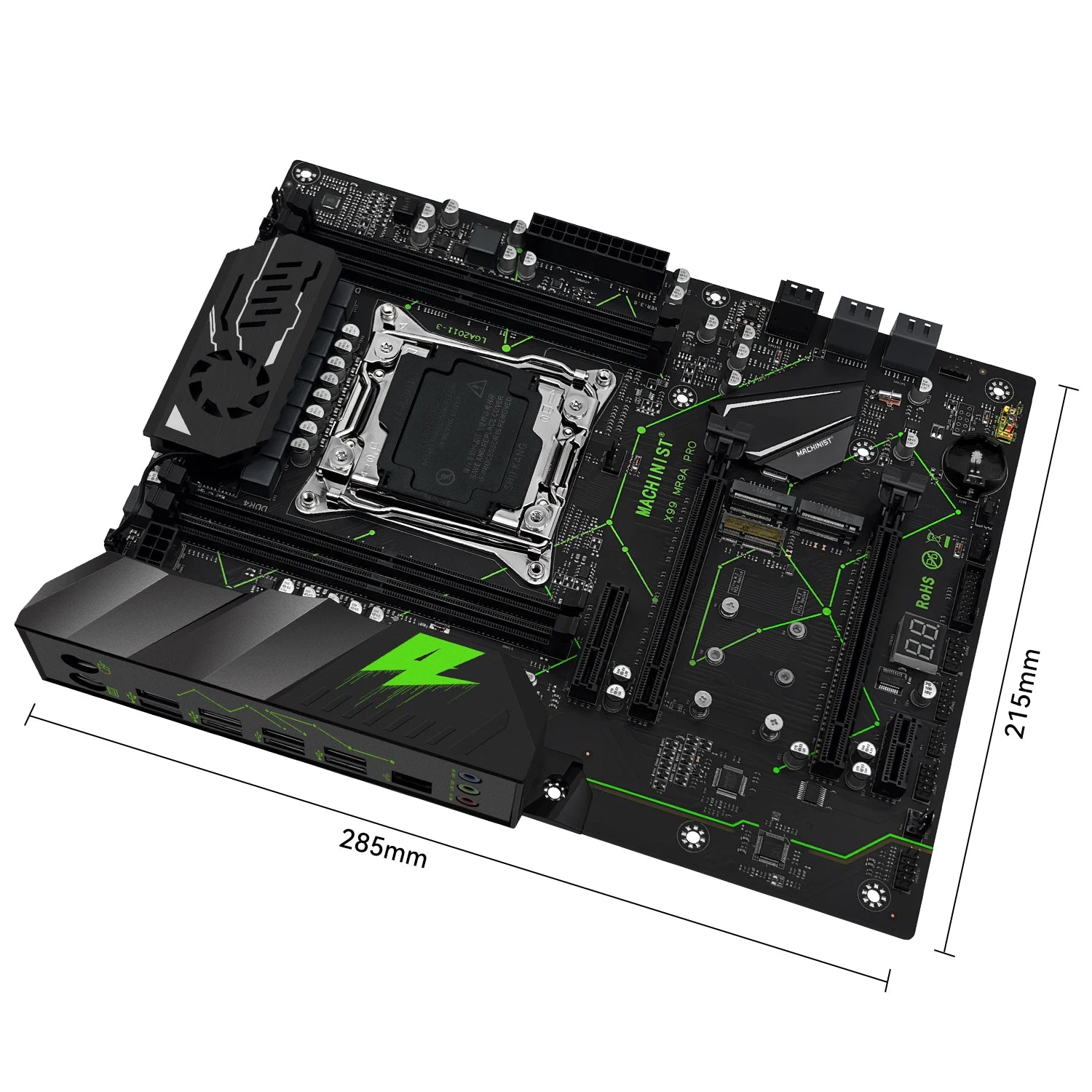

Overall dimensions :280mm * 215mm.

Motherboard weight (including packaging) : approximately 1.3 kilograms.

>> Due to the continuous update and upgrade of the product, the parameters of the packaging box are for reference only. The packaging styles will be sent randomly to new and old ones.>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
